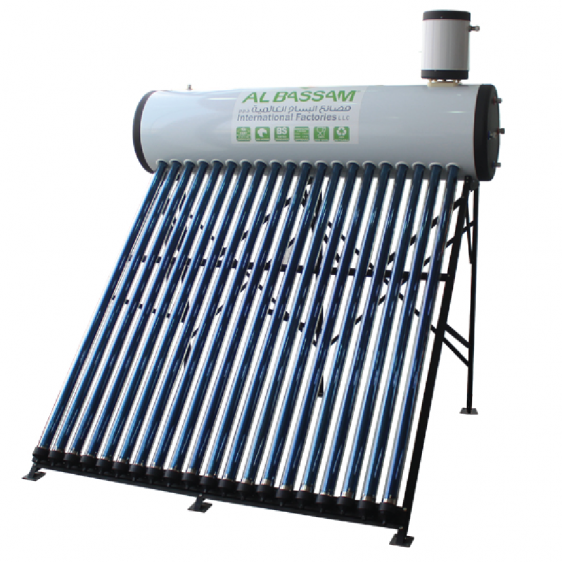

Solar Energy is absolutely the cleanest and most powerful energy in the world. This technology helps to save electricity and helps for greener environment. Solar Water Heater works without electricity from sunlight with the help of vacuum tubes. Back up electricity is available in this heater.
These heaters are to be fixed on the roof with a separate pipe connected directly to bathrooms. For more quality results, customers are advised to use insulated pipe by rock wall / glass.
Vacuum Tubes:
Vacuum tubes are those which absorbs solar light & converts it to heat for use in heating water directly.
Vacuum tubes have many characteristics such as:
Storage Tanks:
Storage tanks are fixed on top of vacuum tubes which have condenser to heat the inside tank. It is available in three capacities; 200 L, 250 L & 300 L.
|
Storage Tank Capacity |
200 Lit |
250 Lit |
300 Lit |
|
Number of Vacuum Tubes |
20 |
25 |
30 |
|
Insulation Thickness |
50-60 mm |
||
|
Tank Diameter |
560 mm |
||
|
Vent Connection |
½ inch |
||
|
Water Connection |
¾ inch |
||
